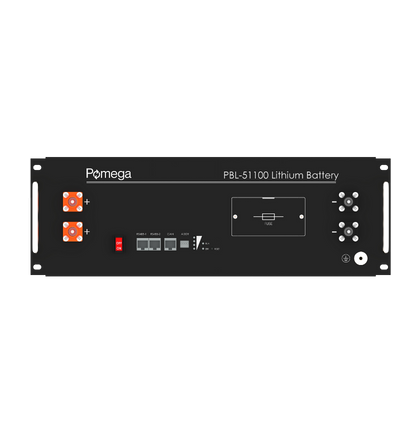

| Basic Specifications | PBL-51100 |
| Basic Features | |
| Battery Type | LiFePO4 - Prismatic |
| Nominal Voltage | 51.2V |
| Nominal Capacity (*) | 100Ah |
| Nominal Energy Capacity | 5.12kWh |
| Operating Voltage Range | 44V - 56.8V |
| Maximum Charge Voltage | 56.8V |
| Standard Charge/Discharge Current | 50A / 50A |
| Maximum Continuous Charge/Discharge Current | 100A / 100A |
| Limited Charge Current | 10A |
| Cycle Life (*) | ≥4000 Cycles |
| Normal Operating Temperature | 25°C |
| Charge Temperature | 0~50°C |
| Discharge Temperature (**) | -15~50°C |
| Storage Temperature | -10~60°C |
| Remaining Capacity Loss | Monthly ≤4% (25°C ±2C) |
| Warranty | 10 Years |
| Functional Features | |
| Communication | CAN, RS485 |
| Scalability | Max. 8 units in parallel |
| Cooling | Natural Cooling |
| Integrated Heater | No |
| BMS Protections | UV, OV, OC, UT, OT, SC |
| LED Indicators | Alarm, Run, SOC |
| High Current Protection | Externally Replaceable Fuse |
| Compatible Inverters (***) | Deye, Victron, Senergy, Growatt, Hopewind |
| Mechanical Features | |
| Protection Level | IP20 |
| Humidity | 5%-85%RH (Non-condensing) |
| Altitude | < 3000m |
| Dimensions (WxDxH) | 446x532x160mm (19 Inches - 3.5U) |
| Weight | 48±1 kg |
| Power Terminal | Click Connectors |
(*) Test Conditions: 25°C
(**) Performance may vary under different conditions
(***) Contact us for other inverter brands
